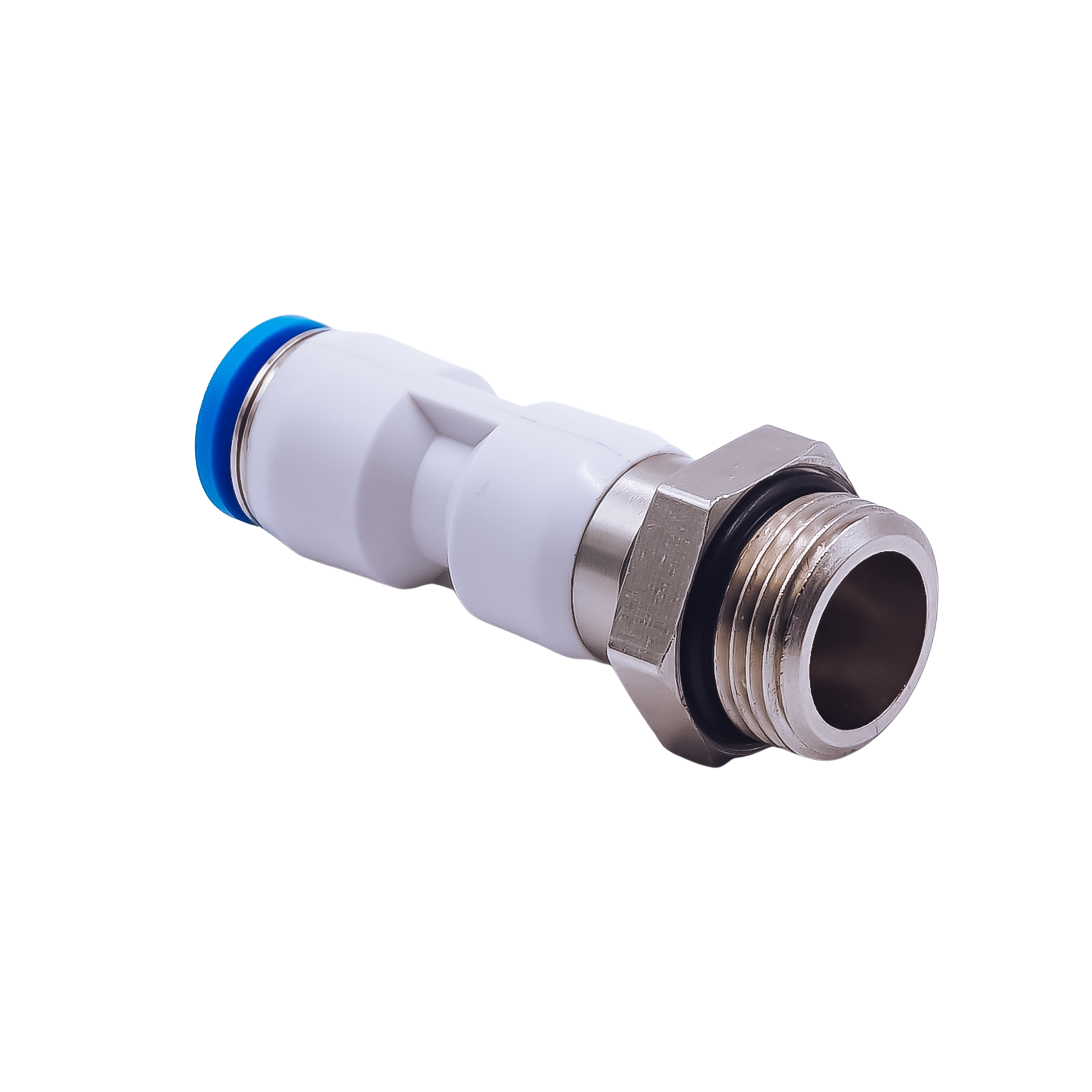

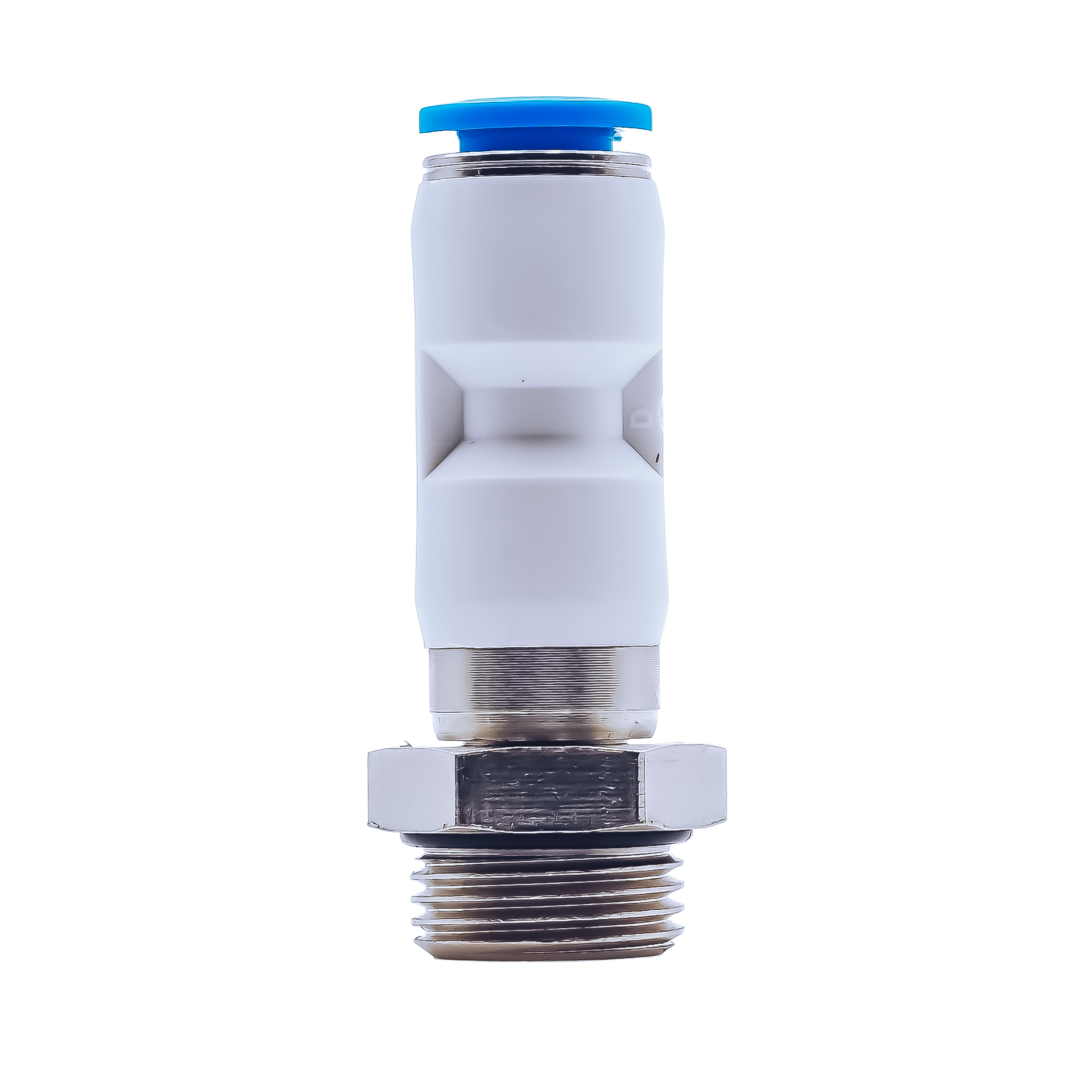

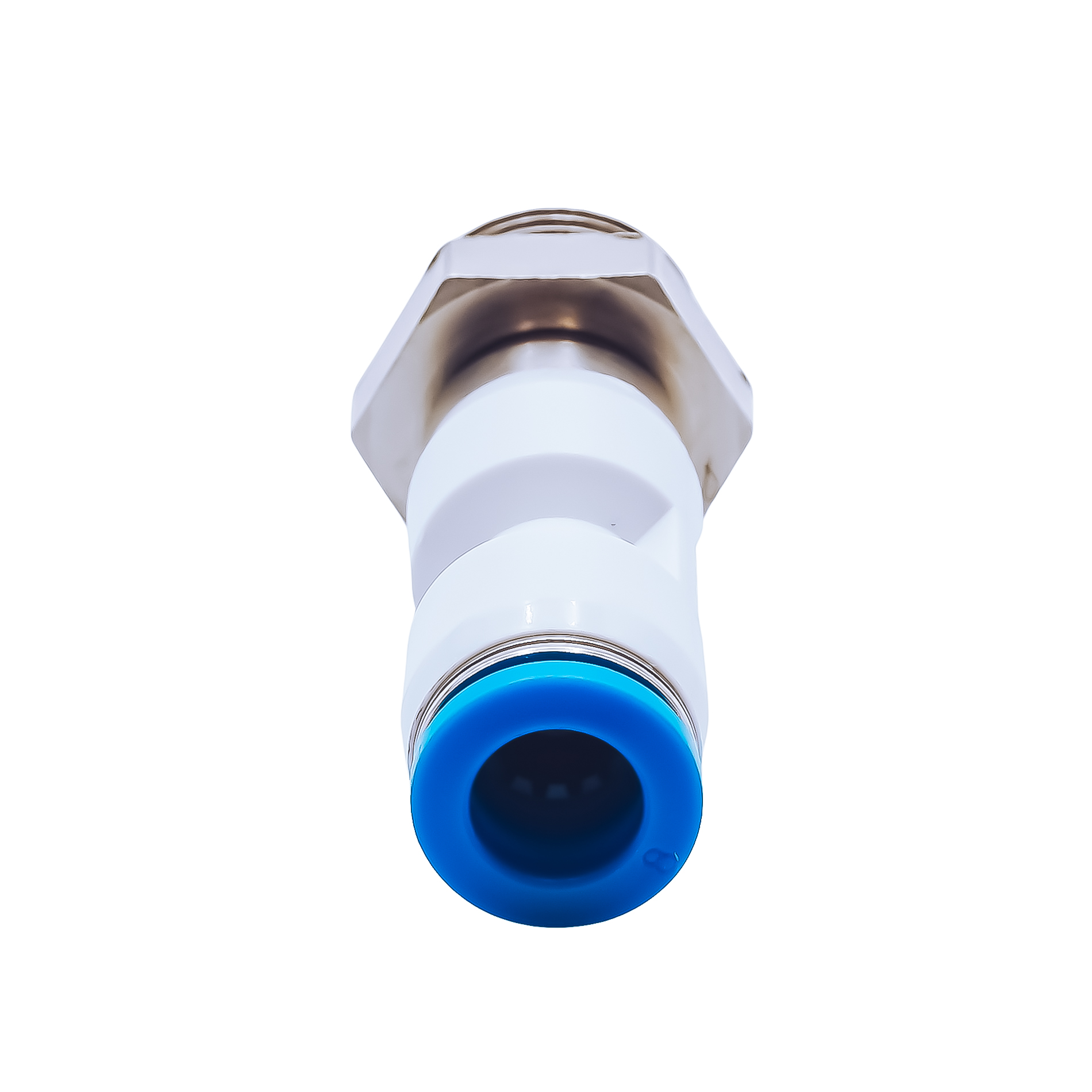

Złączki wtykowe proste łożyskowane

Opis

SKU	Rodzaj gwintu	Gwint	ØD	A	B	H	ØP
IQSRM54-P	M	M5	4 mm	4 mm	44,5 mm	8 mm	13 mm
IQSR184G-P	G	1/8	4 mm	7,5 mm	48 mm	12 mm	13 mm
IQSRM56-P	M	M5	6 mm	4 mm	45 mm	8 mm	13 mm
IQSR186G-P	G	1/8	6 mm	7,5 mm	48,5 mm	12 mm	13 mm
IQSR146G-P	G	1/4	6 mm	10 mm	51 mm	14 mm	13 mm
IQSR188G-P	G	1/8	8 mm	7,5 mm	50,5 mm	14 mm	15 mm
IQSR148G-P	G	1/4	8 mm	10 mm	53 mm	14 mm	15 mm
IQSR388G-P	G	3/8	8 mm	10,5 mm	53,5 mm	17 mm	15 mm
IQSR3810G-P	G	3/8	10 mm	10,5 mm	60 mm	17 mm	18,5 mm
IQSR1210G-P	G	1/2	10 mm	12 mm	61,5 mm	21 mm	18,5 mm
IQSR3812G-P	G	3/8	12 mm	10,5 mm	63 mm	17 mm	21 mm
IQSR1212G-P	G	1/2	12 mm	12 mm	64,5 mm	21 mm	21 mm
