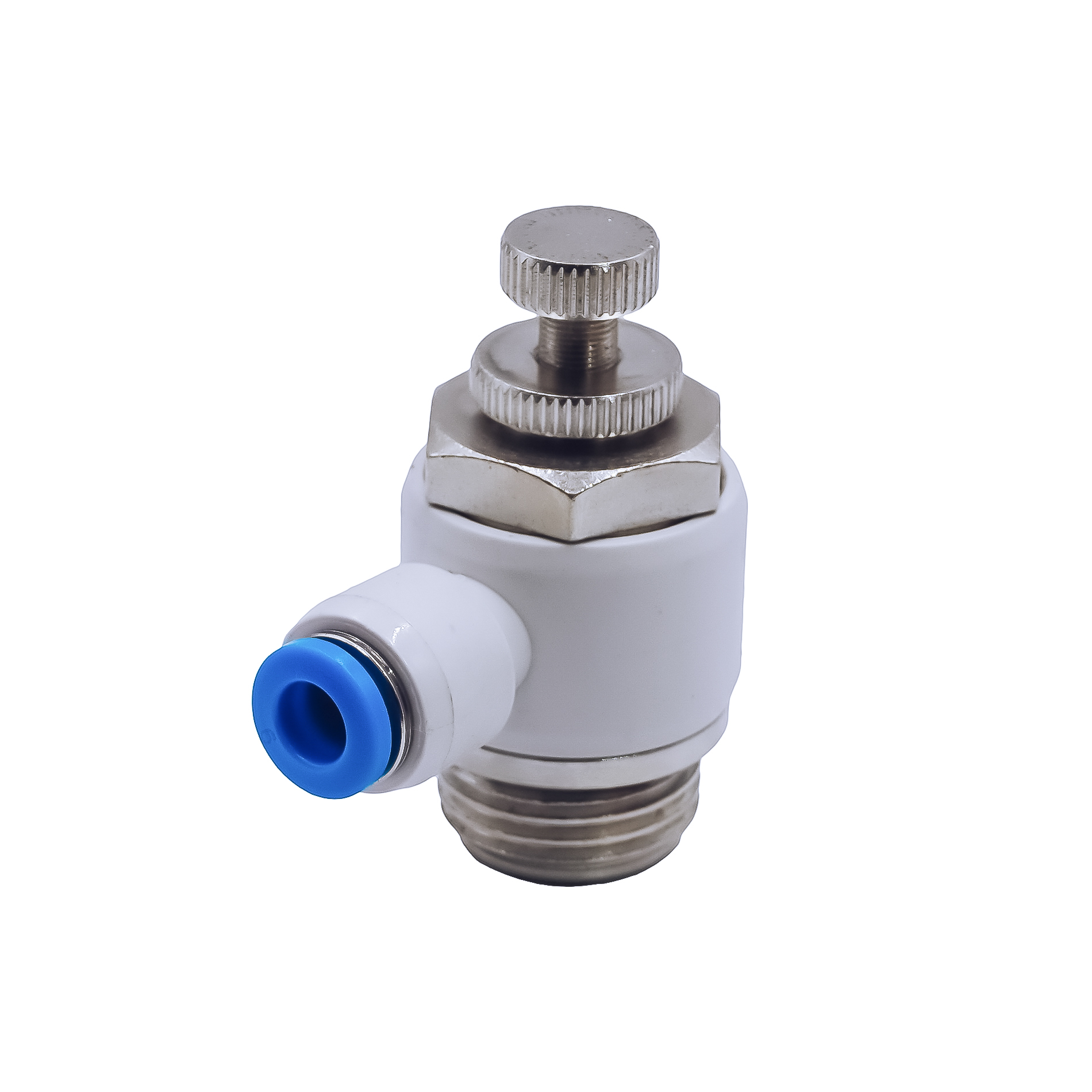

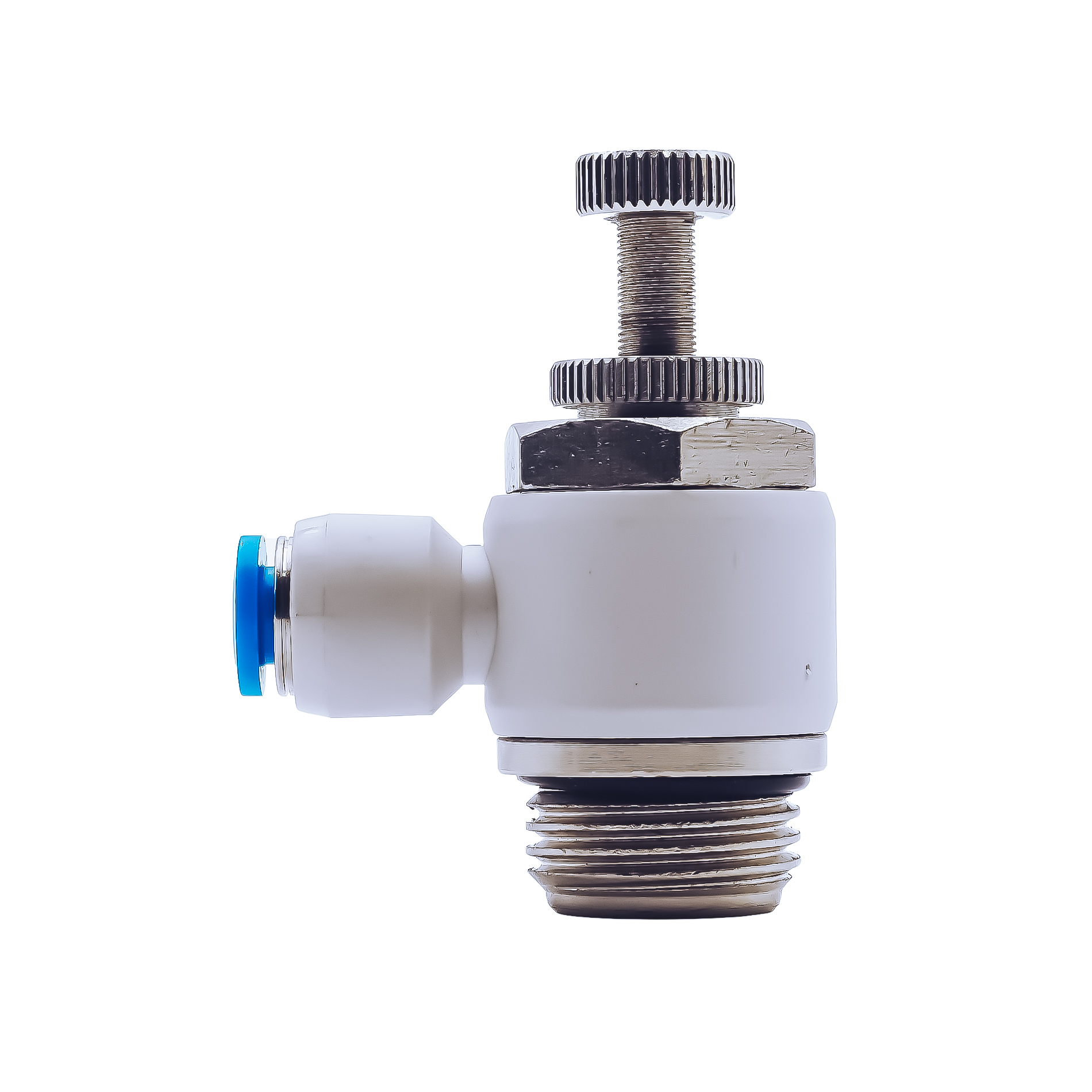

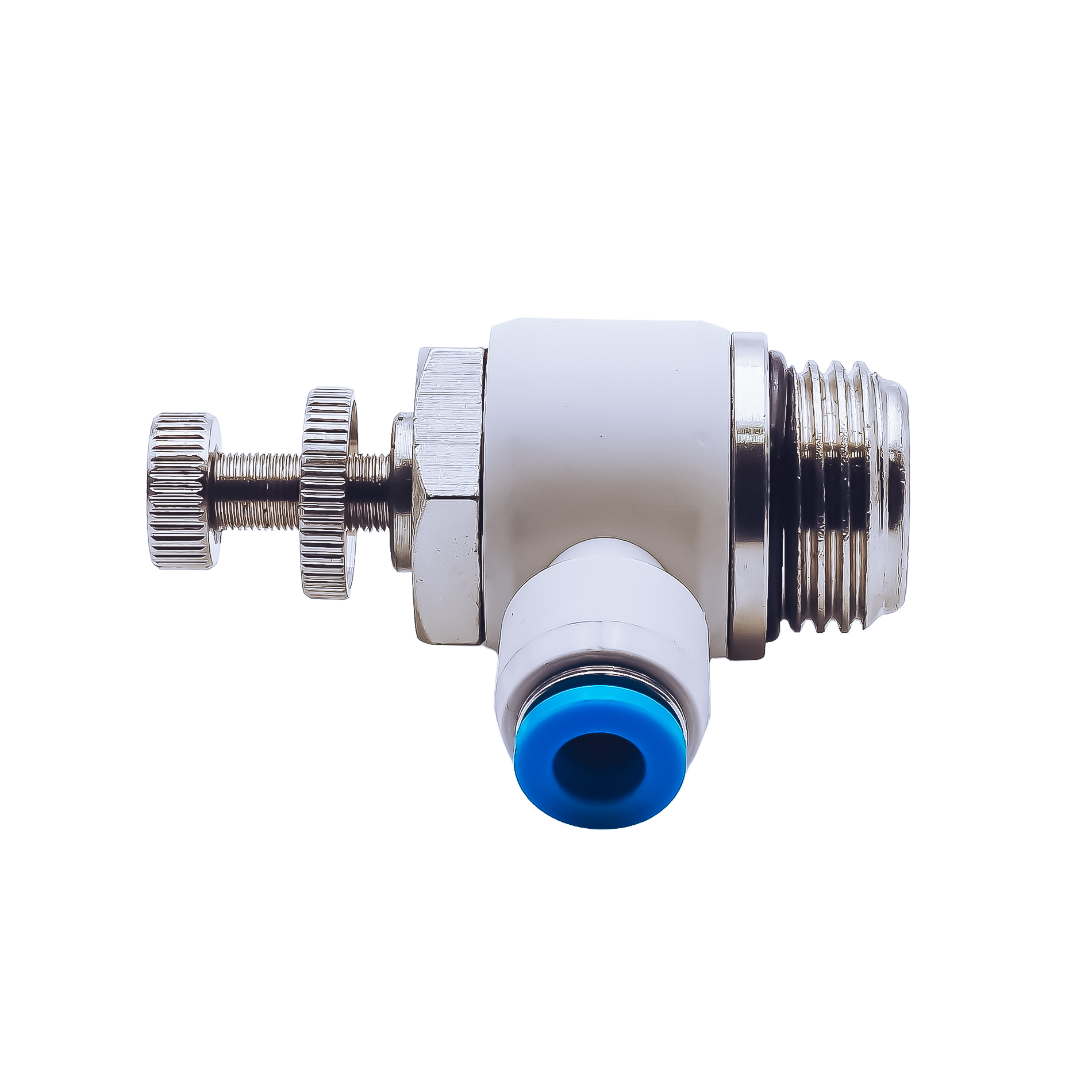

Zawory dławiąco-zwrotne wtykowe z gwintem zewnętrznym

SKU: P-K-GRLAIQS-P Kategoria:

Opis

Dane techniczne:

SKU Rodzaj gwintu Gwint ØD A B E H ØP
GRLAIQSM54-P M M5 4 mm 3,8 mm 29 mm 20,5 mm 8 mm 11 mm
GRLAIQS184G-P G 1/8 4 mm 6 mm 37 mm 24 mm 11 mm 13 mm
GRLAIQS144G-P G 1/4 4 mm 8,5 mm 39 mm 25 mm 15 mm 13 mm
GRLAIQSM56-P M M5 6 mm 3,8 mm 29 mm 22,5 mm 8 mm 13 mm
GRLAIQS186G-P G 1/8 6 mm 6 mm 37 mm 24 mm 11 mm 13 mm
GRLAIQS146G-P G 1/4 6 mm 8,5 mm 39 mm 25,5 mm 15 mm 13 mm
GRLAIQS386G-P G 3/8 6 mm 9 mm 46 mm 29,5 mm 19 mm 13 mm
GRLAIQS126G-P G 1/2 6 mm 10 mm 50 mm 31 mm 22 mm 13 mm
GRLAIQS188G-P G 1/8 8 mm 6 mm 37 mm 26 mm 11 mm 15 mm
GRLAIQS148G-P G 1/4 8 mm 8,5 mm 39 mm 28 mm 15 mm 15 mm
GRLAIQS388G-P G 3/8 8 mm 9 mm 46 mm 30 mm 19 mm 15 mm
GRLAIQS128G-P G 1/2 8 mm 10 mm 50 mm 32 mm 22 mm 15 mm
GRLAIQS1810G-P G 1/8 10 mm 6 mm 37 mm 31 mm 11 mm 21 mm
GRLAIQS1410G-P G 1/4 10 mm 8,5 mm 39 mm 31,5 mm 15 mm 18,5 mm
GRLAIQS3810G-P G 3/8 10 mm 9 mm 46 mm 33 mm 19 mm 18,5 mm
GRLAIQS1210G-P G 1/2 10 mm 10 mm 50 mm 35 mm 22 mm 21 mm
GRLAIQS1412G-P G 1/4 12 mm 8,5 mm 39 mm 33 mm 15 mm 21 mm
GRLAIQS3812G-P G 3/8 12 mm 9 mm 46 mm 33,5 mm 19 mm 21 mm
GRLAIQS1212G-P G 1/2 12 mm 10 mm 50 mm 35 mm 22 mm 21 mm
