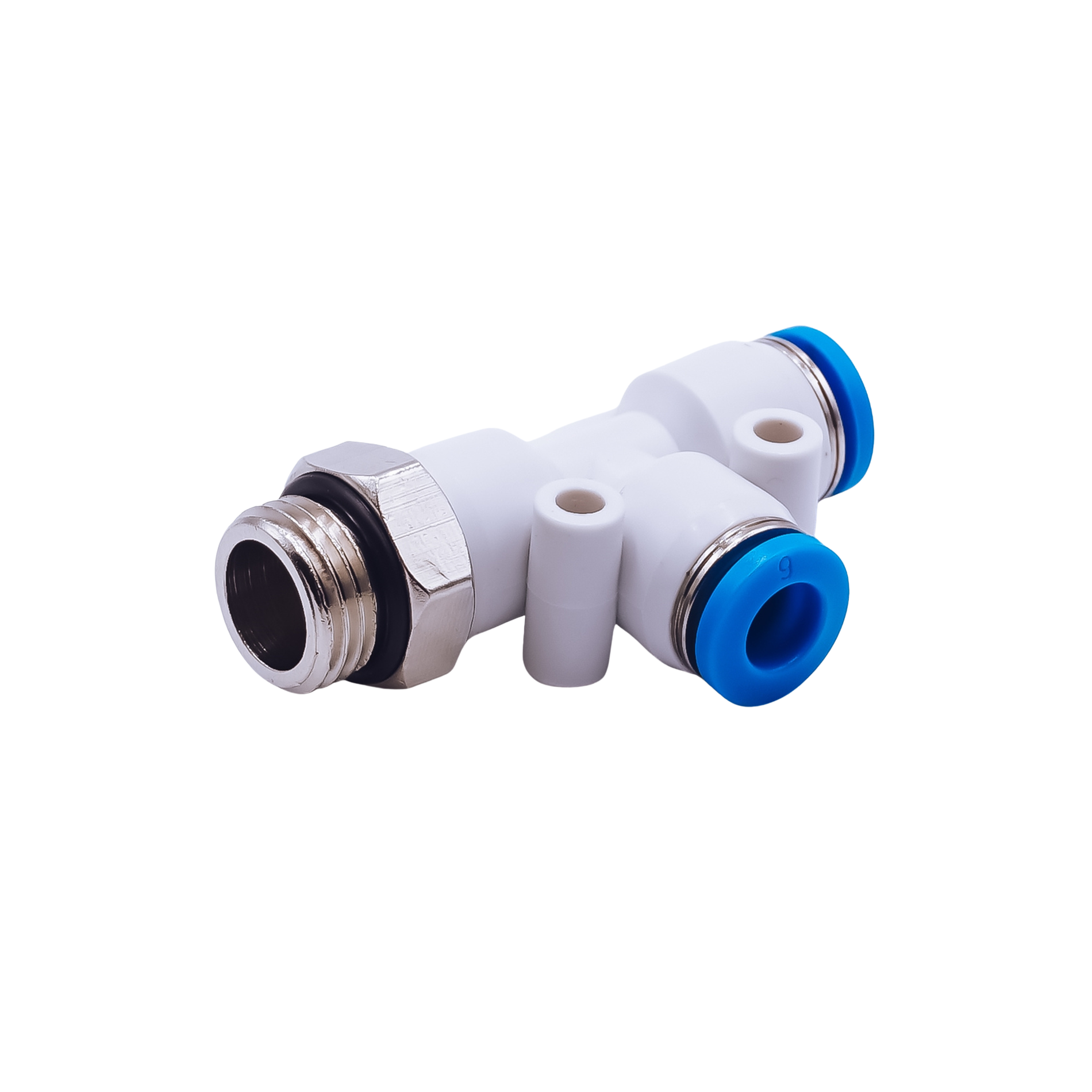

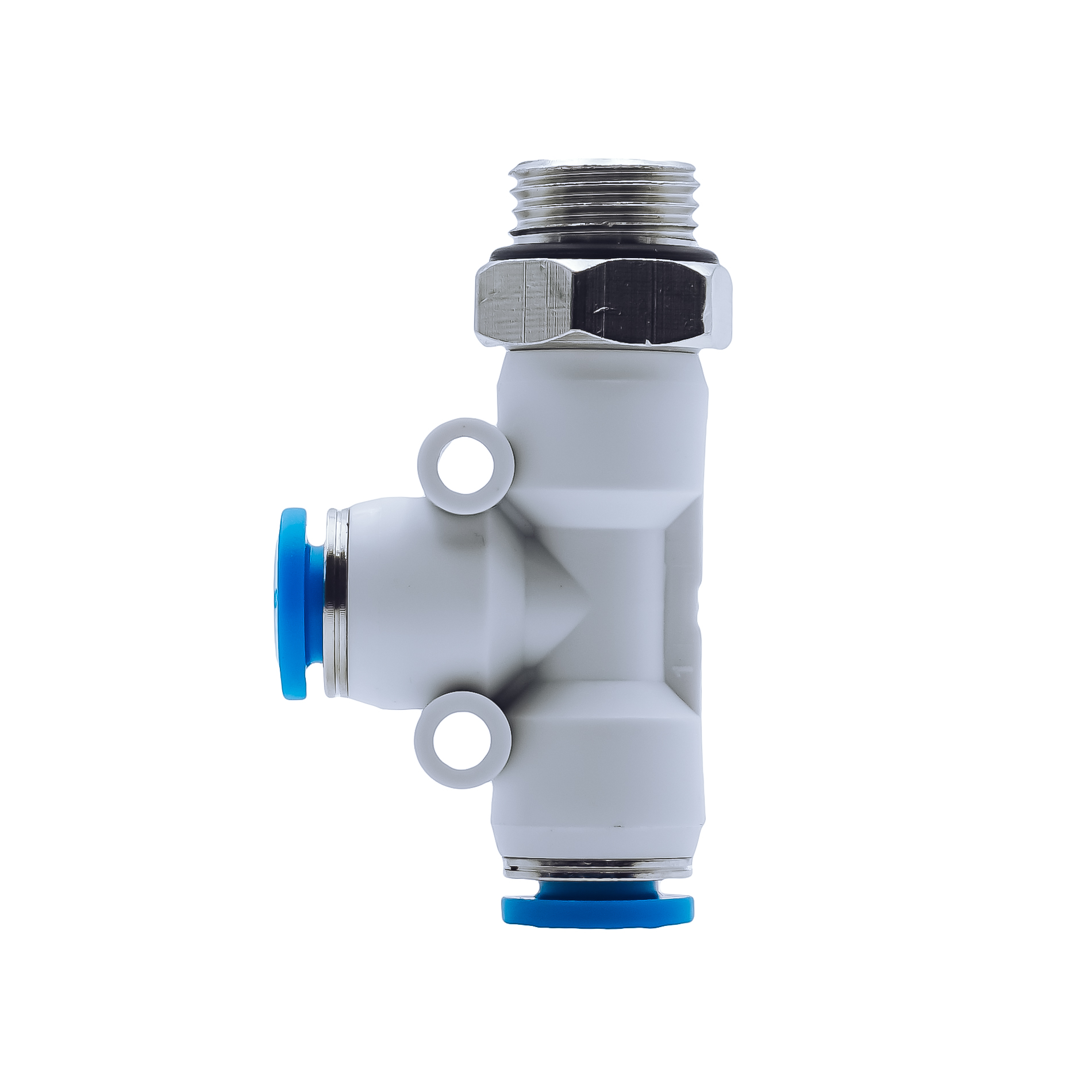

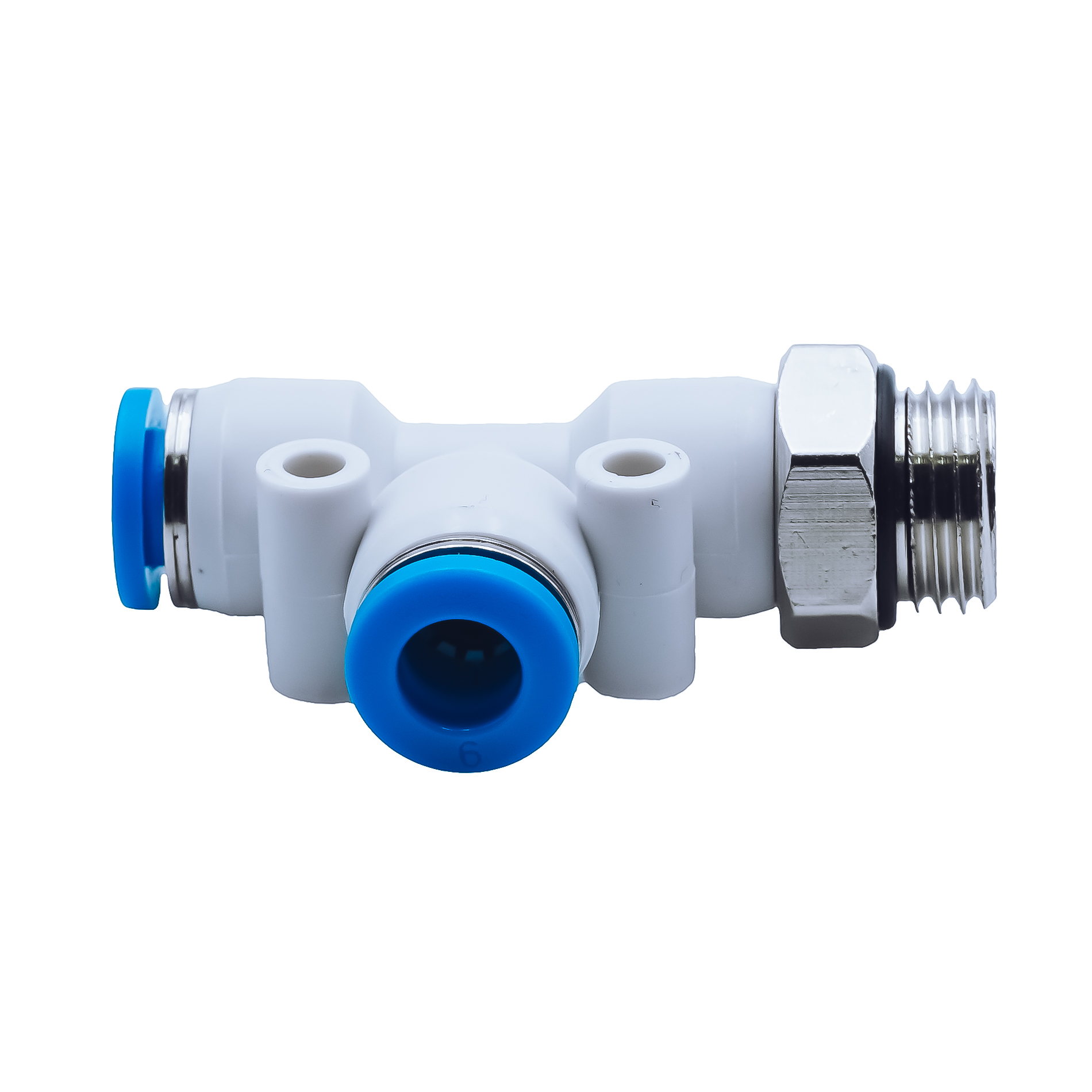

Trójniki wtykowe T z gwintem bocznym

SKU: P-K-IQST-GB-P Kategorie: , ,

Opis

Dane techniczne:

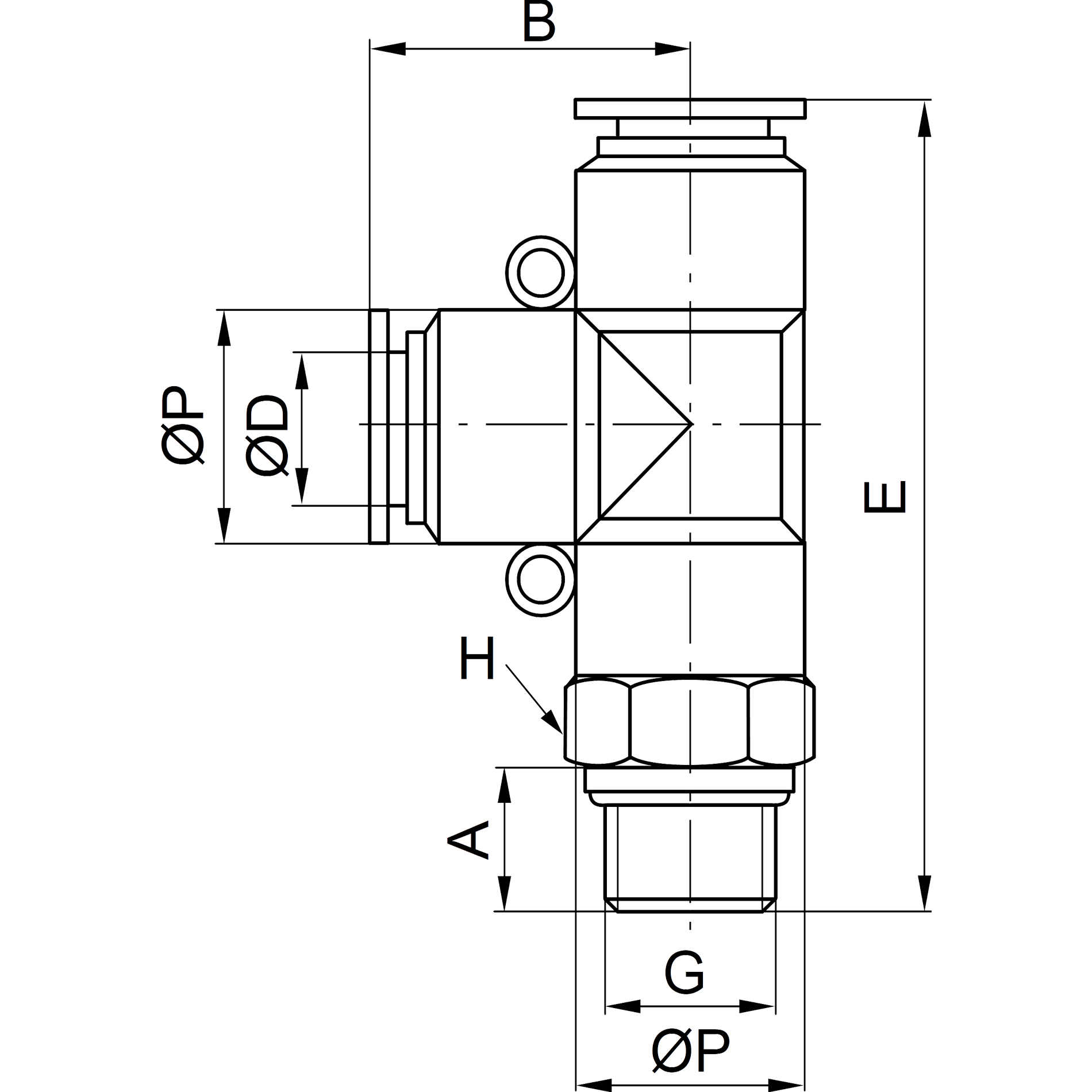

SKU Rodzaj gwintu Gwint ØD A B E H ØP
IQSTLM54-P M M5 4 mm 3.5 mm 36 mm 39.5 mm 10 mm 11 mm
IQSTL184G-P G 1/8 4 mm 5.5 mm 36 mm 41.5 mm 12 mm 11 mm
IQSTL144G-P G 1/4 4 mm 6.5 mm 36 mm 42.5 mm 15 mm 11 mm
IQSTLM56-P G M5 6 mm 3.5 mm 40 mm 43.5 mm 12 mm 13 mm
IQSTL186G-P G 1/8 6 mm 5.5 mm 40 mm 45.5 mm 12 mm 13 mm
IQSTL146G-P G 1/4 6 mm 6.5 mm 40 mm 46.5 mm 15 mm 13 mm
IQSTL386G-P G 3/8 6 mm 7.5 mm 40 mm 47.5 mm 19 mm 13 mm
IQSTL188G-P G 1/8 8 mm 5.5 mm 44 mm 49 mm 14 mm 15 mm
IQSTL148G-P G 1/4 8 mm 6.5 mm 44 mm 50 mm 15 mm 15 mm
IQSTL388G-P G 3/8 8 mm 7.5 mm 44 mm 51 mm 19 mm 15 mm
IQSTL128G-P G 1/2 8 mm 9.5 mm 44 mm 53.5 mm 24 mm 15 mm
IQSTL1810G-P G 1/8 10 mm 5.5 mm 52 mm 56.5 mm 17 mm 18.5 mm
IQSTL1410G-P G 1/4 10 mm 6.5 mm 52 mm 57.5 mm 17 mm 18.5 mm
IQSTL3810G-P G 3/8 10 mm 7.5 mm 52 mm 58.5 mm 19 mm 18.5 mm
IQSTL1210G-P G 1/2 10 mm 9.5 mm 52 mm 61 mm 24 mm 18.5 mm
IQSTL1412G-P G 1/4 12 mm 6.5 mm 56 mm 61.5 mm 19 mm 21 mm
IQSTL3812G-P G 3/8 12 mm 7.5 mm 56 mm 62.5 mm 19 mm 21 mm
IQSTL1212G-P G 1/2 12 mm 9.5 mm 56 mm 65 mm 24 mm 21 mm
IQSTL3814G-P G 3/8 14 mm 7.5 mm 62 mm 68 mm 22 mm 23 mm
IQSTL1214G-P G 1/2 14 mm 9.5 mm 62 mm 70 mm 24 mm 23 mm
IQSTL1216G-P G 1/2 16 mm 9.5 mm 66 mm 74 mm 24 mm 25.5 mm
