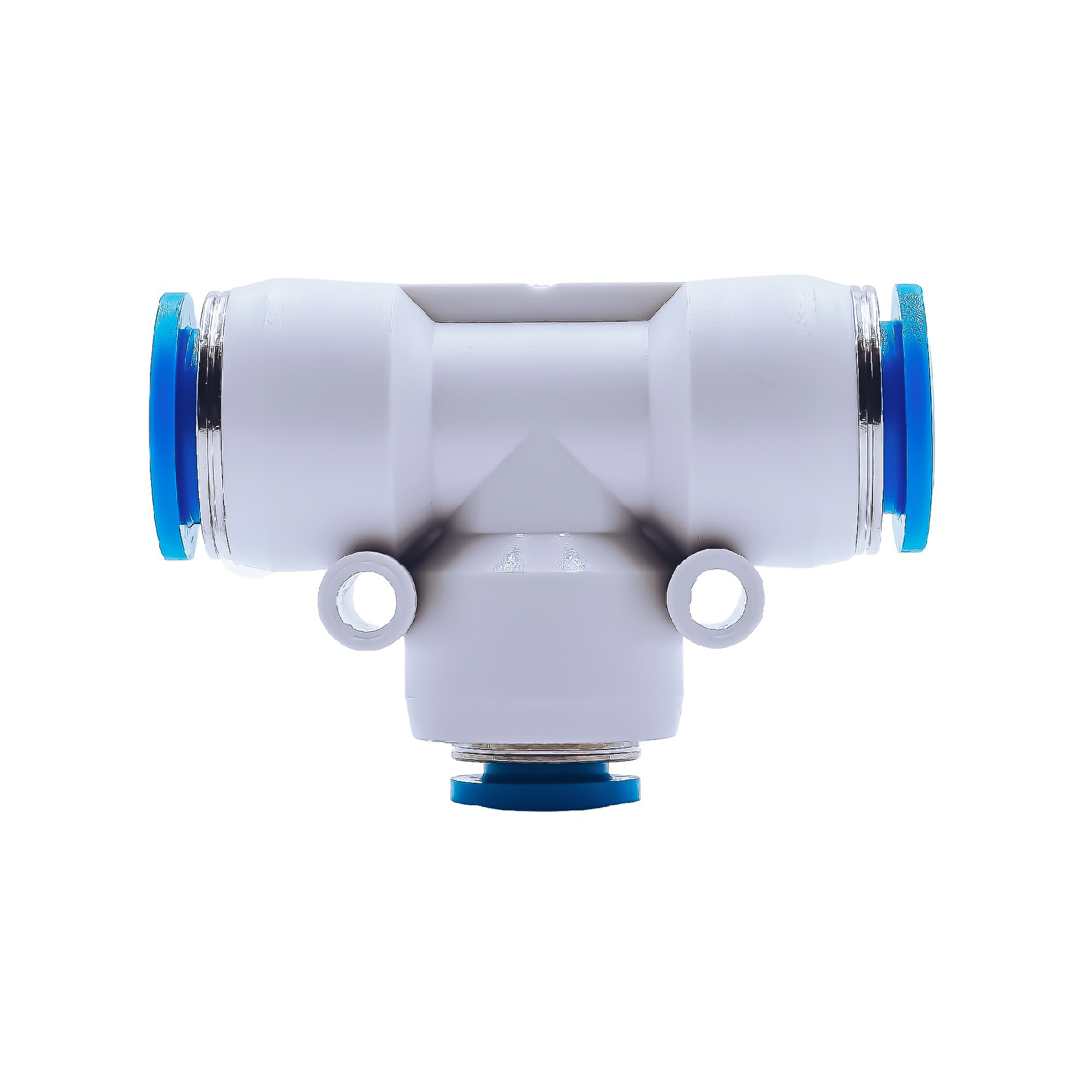

Trójniki wtykowe T redukcyjne

SKU: P-K-IQST-R-P Kategorie: , ,

Opis

Dane techniczne:

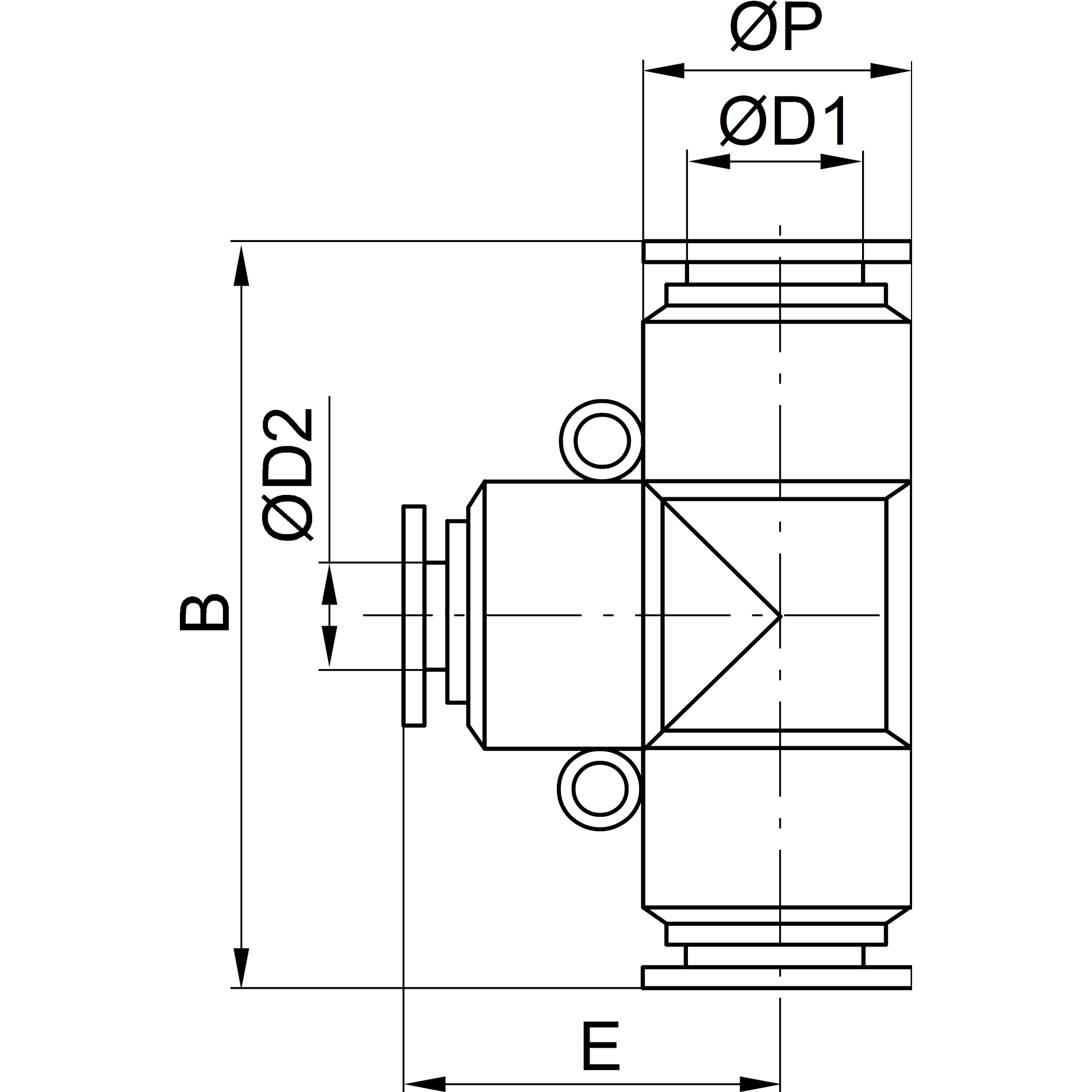

SKU ØD1 ØD2 B E ØP
IQST406040-P 4 mm 6 mm
IQST604060-P 6 mm 4 mm 40 mm 19 mm 13 mm
IQST608060-P 6 mm 8 mm
IQST804080-P 8 mm 4 mm 44 mm 21 mm 15 mm
IQST806080-P 8 mm 6 mm 44 mm 21.5 mm 15 mm
IQST10060100-P 10 mm 6 mm 52 mm 25 mm 18.5 mm
IQST8010080-P 8 mm 10 mm 52 mm 25 mm 18.5 mm
IQST100120100-P 10 mm 12 mm
IQST12080120-P 12 mm 8 mm 56 mm 26.5 mm 21 mm
IQST120100120-P 12 mm 10 mm 56 mm 27.5 mm 21 mm
IQST140100140-P 14 mm 10 mm 62 mm 30 mm 23 mm
IQST140120140-P 14 mm 12 mm 62 mm 30 mm 23 mm
IQST160120160-P 16 mm 12 mm 66 mm 32 mm 25.5 mm
IQST160140160-P 16 mm 14 mm 66 mm 32.5 mm 25.5 mm
