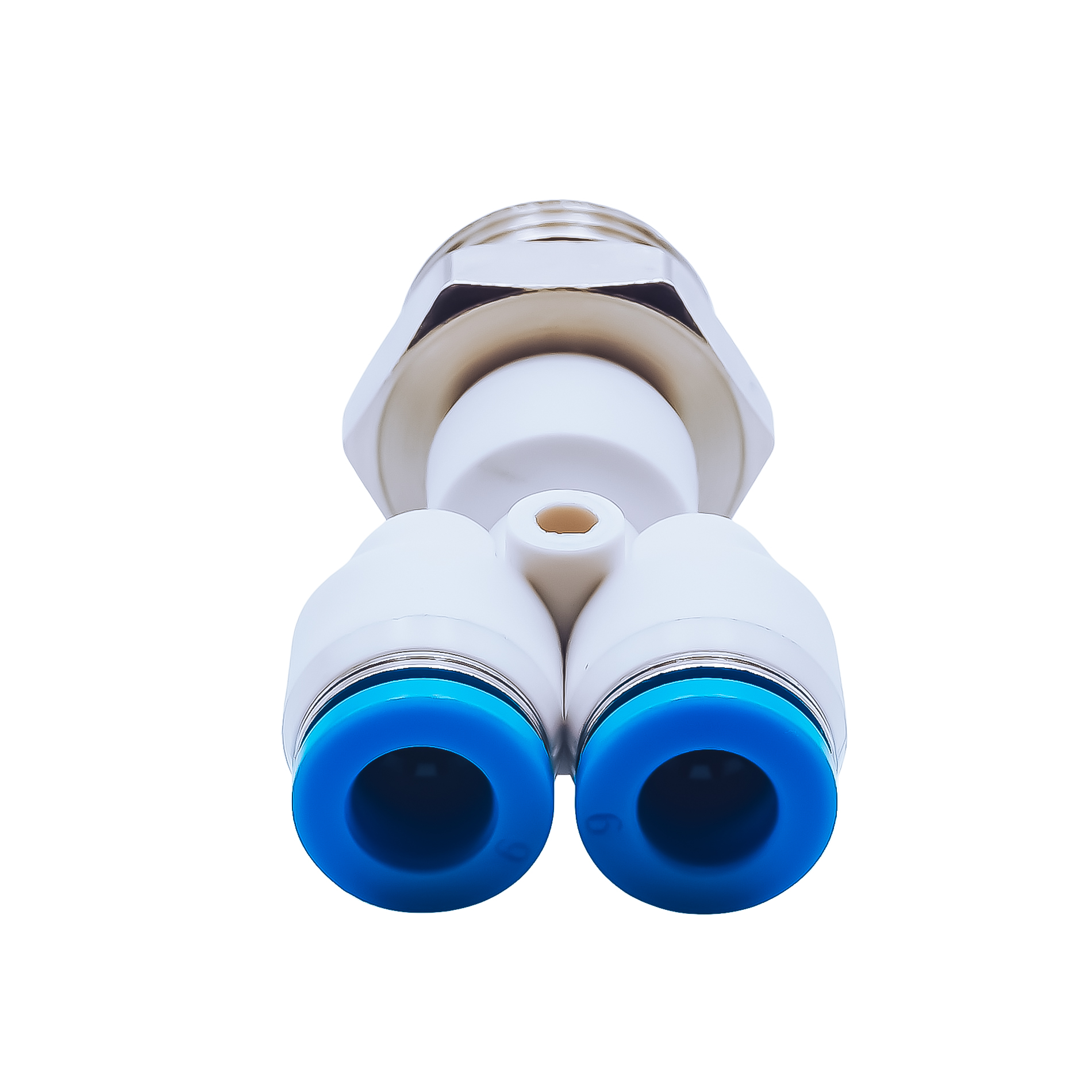

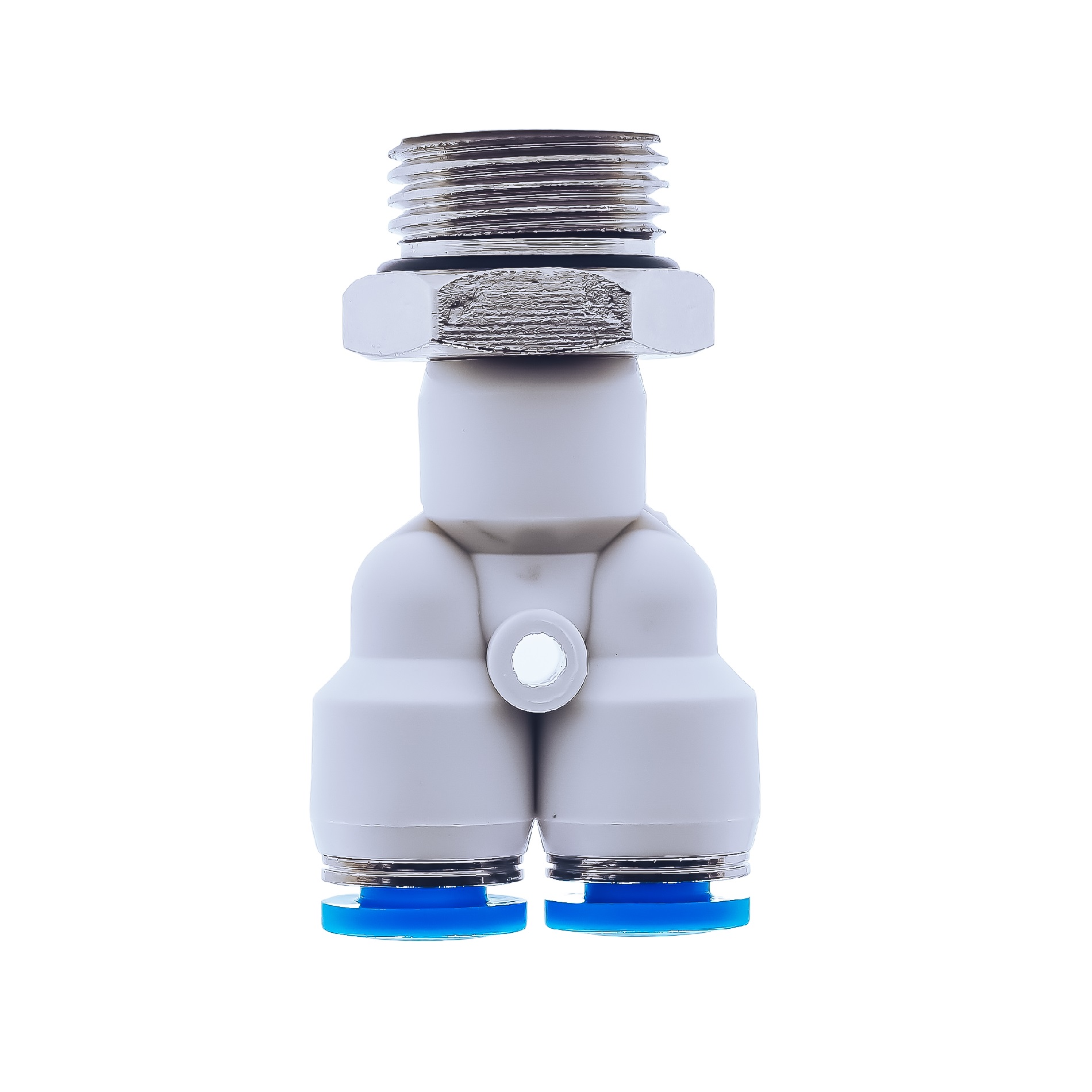

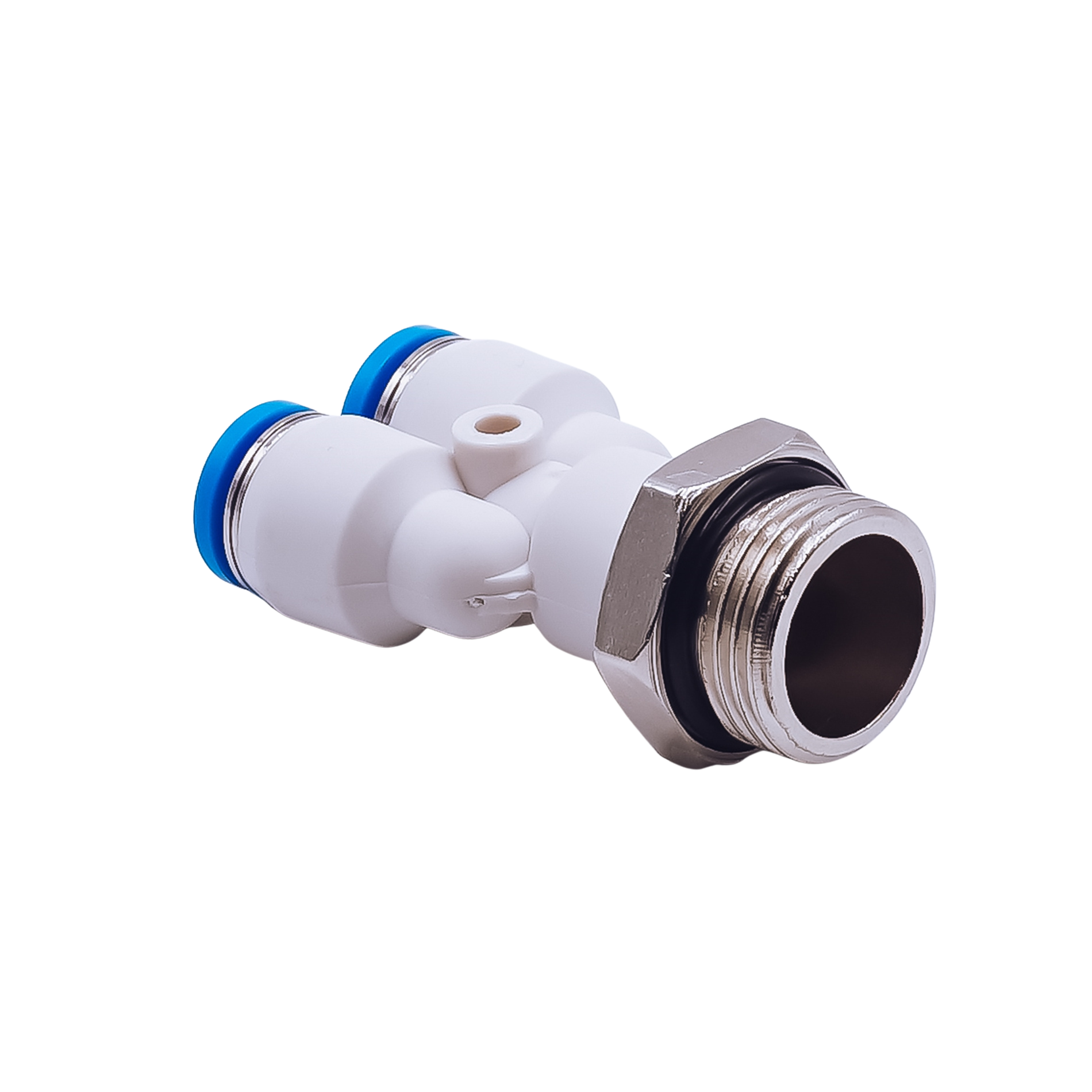

Trójniki wtykowe Y z gwintem zewnętrznym

Opis

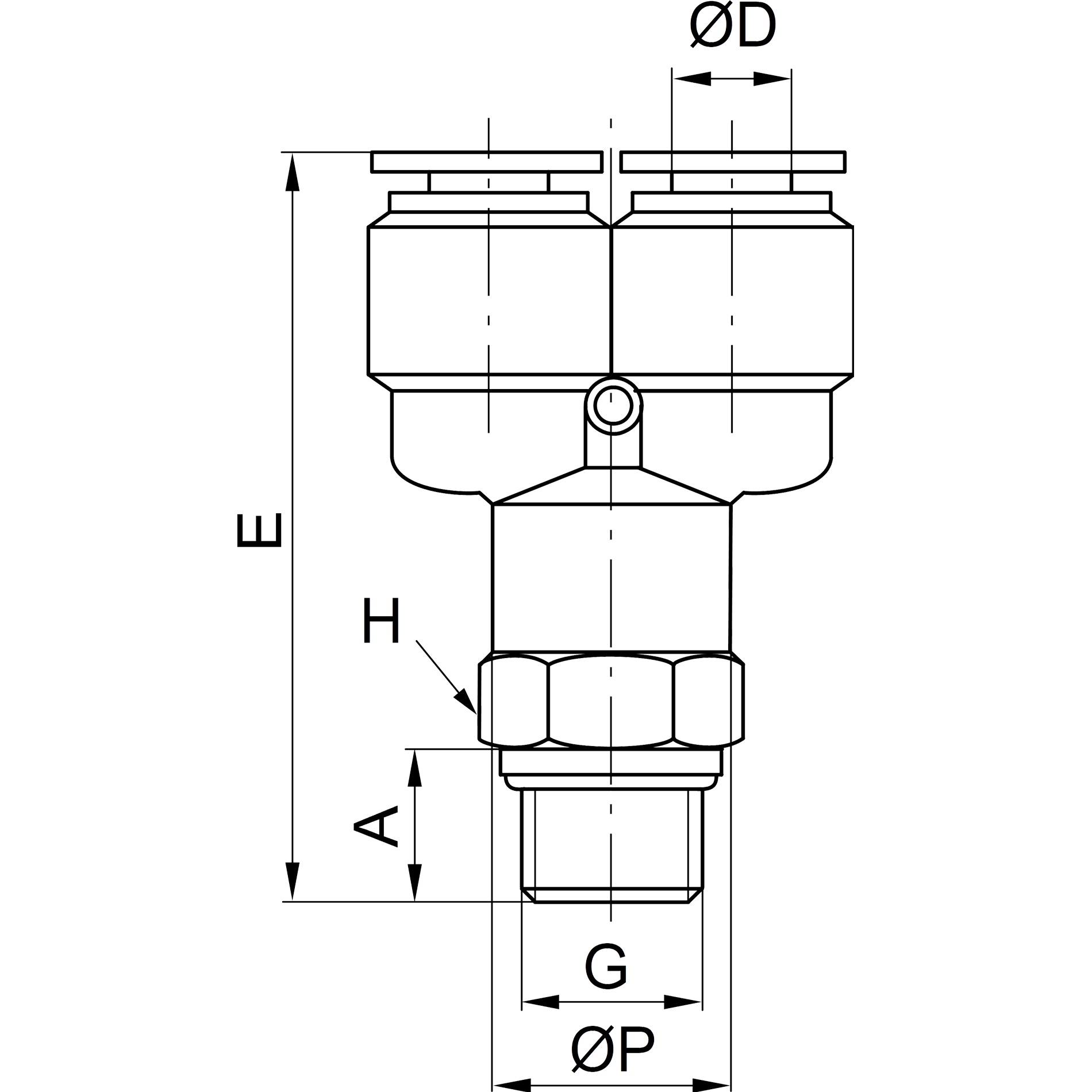

SKU	Rodzaj gwintu	Gwint	ØD	A	E	H	ØP
IQSY184G-P	G	1/8	4 mm	5.5 mm	39 mm	12 mm	11 mm
IQSY144G-P	G	1/4	4 mm	6.5 mm	40 mm	15 mm	11 mm
IQSY186G-P	G	1/8	6 mm	5.5 mm	42 mm	12 mm	13 mm
IQSY146G-P	G	1/4	6 mm	6.5 mm	43 mm	15 mm	13 mm
IQSY386G-P	G	3/8	6 mm	7.5 mm	44 mm	19 mm	13 mm
IQSY188G-P	G	1/8	8 mm	5.5 mm	46 mm	14 mm	15 mm
IQSY148G-P	G	1/4	8 mm	6.5 mm	47 mm	15 mm	15 mm
IQSY388G-P	G	3/8	8 mm	7.5 mm	48 mm	19 mm	15 mm
IQSY128G-P	G	1/2	8 mm	9.5 mm	50.5 mm	24 mm	15 mm
IQSY1810G-P	G	1/8	10 mm	5.5 mm	50 mm	17 mm	18.5 mm
IQSY1410G-P	G	1/4	10 mm	6.5 mm	51 mm	17 mm	18.5 mm
IQSY3810G-P	G	3/8	10 mm	7.5 mm	52 mm	19 mm	18.5 mm
IQSY1210G-P	G	1/2	10 mm	9.5 mm	54.5 mm	24 mm	18.5 mm
IQSY1412G-P	G	1/4	12 mm	6.5 mm	53.5 mm	19 mm	21 mm
IQSY3812G-P	G	3/8	12 mm	7.5 mm	54.5 mm	19 mm	21 mm
IQSY1212G-P	G	1/2	12 mm	9.5 mm	57 mm	24 mm	21 mm
